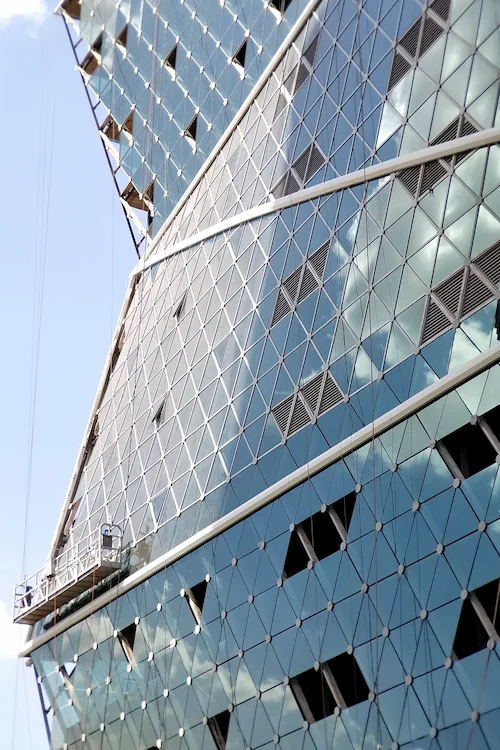

A curtain wall grid defines how a façade is divided into individual bays and panels.
On an elevation, it appears as a pattern of vertical and horizontal lines that organizes the façade visually.
But the grid is more than a visual pattern. It forms part of the physical logic of the curtain wall and its relationship with the building.
Understanding this relationship is essential when developing a grid that works beyond the elevation, through engineering, fabrication, and installation.

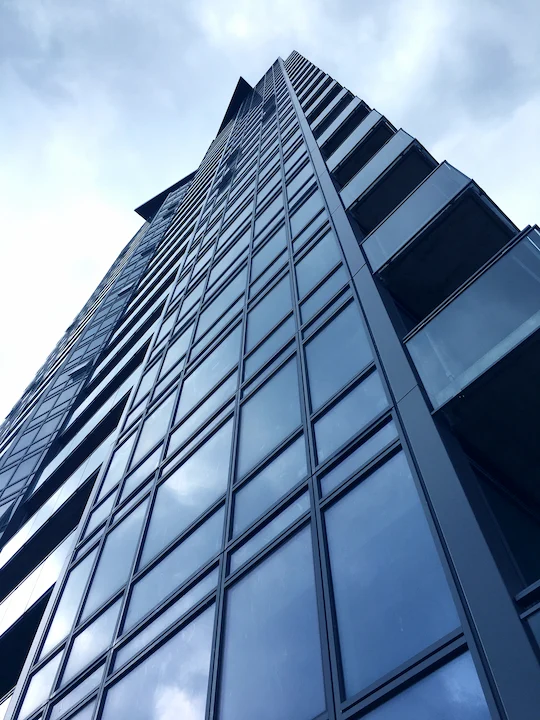

On an architectural elevation, a grid line may look like a simple division between panels.
In the physical curtain wall, it establishes where components meet or change.
A vertical grid line may define a mullion, glass edge, or unit joint. A horizontal grid line may define a transom, panel boundary, or floor-level interface.
Moving a grid line changes the physical arrangement of the façade.
That is why grid layout needs to be coordinated with the curtain wall system and its components.

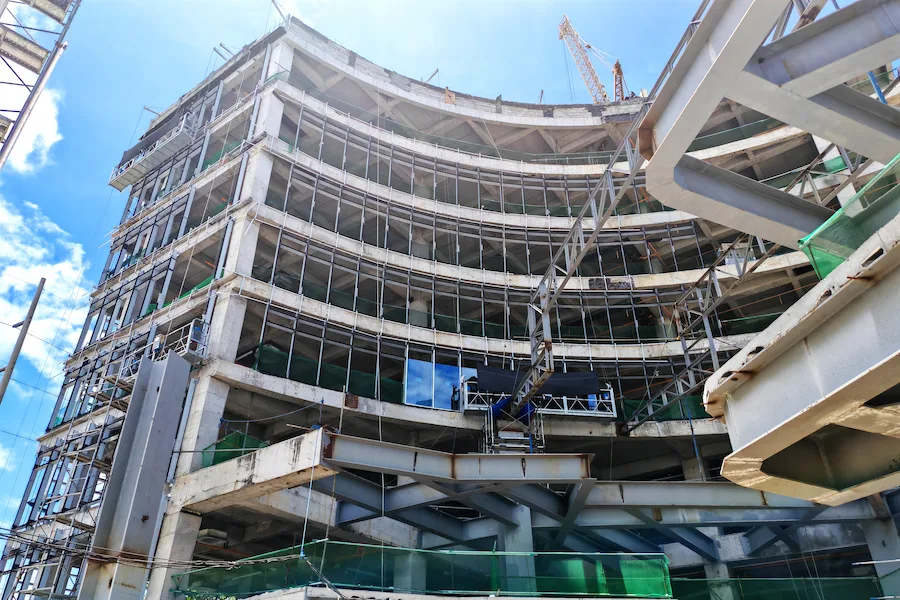

A curtain wall must transfer loads and accommodate movement through connections to the building structure.
The grid provides a reference for positioning façade members in relation to the structure.
The connection relationship can be simplified as:
Grid Position → Façade Member → Connection → Building Structure
The challenge is to make these relationships work together. A mullion or unit joint may need to align with slabs, edge beams, columns, or other structural elements, depending on the curtain wall system and project conditions.
For stick systems, mullions and transoms are coordinated with site-installed connections. For unitized systems, unit joints and floor-level interfaces must work with the building structure and installation conditions.
The structural relationship should be considered from the beginning of grid development.
A curtain wall grid represents the intended façade position, while the building structure and installation conditions involve allowable dimensional tolerances.
The key is to achieve the designed grid within the actual conditions on site.
Variations in slab edges, structural dimensions, and connection locations can affect façade positioning. The curtain wall connection system needs sufficient adjustment to absorb these variations while maintaining the required alignment.
Grid Design → Construction Tolerances → Connection Adjustment → Final Alignment
Tolerance should be considered during grid and connection development so the designed façade position can be achieved accurately during installation.
The grid sets the position; the connection system makes that position achievable on site.
A curtain wall grid influences how many different panel configurations are required across the façade.
A more repetitive grid creates more standardized panel types, while greater variation in the grid increases the number of unique configurations.
Different panel widths, corner conditions, entrances, feature areas, and irregular geometry can all introduce additional panel types.
More panel types mean more variations to engineer, document, fabricate, label, and inspect.
The grid should remain repeatable wherever the building geometry allows, with special conditions organized as distinct panel configurations.
Greater grid consistency means fewer unnecessary panel variations and a more controlled fabrication process.
A grid may be set early in the architectural design, but its influence expands as the façade develops.
Once the grid is incorporated into façade engineering, a revision can affect multiple layers of project information.
A change may flow through:
Architectural Grid → Façade Engineering → Component Definition → Shop Drawings → Fabrication Information
The later the project has progressed, the more information may need to be updated when the grid changes.
Identifying a grid revision early makes the resulting changes easier to manage.
The idea of a façade grid also applies to other façade systems, but the physical logic behind the layout varies by system.
An aluminum panel façade, for example, may use a similar visual pattern of vertical and horizontal joints, while the panel layout is developed around its own supporting and fixing system.
Different façade systems may share a similar visual grid, but the physical logic behind that grid is system-specific.
This distinction matters when developing or comparing façade systems, because a similar visual arrangement can lead to different engineering and construction solutions.
A curtain wall grid may begin as a pattern on an architectural elevation, but its role extends into the physical organization of the façade. It influences how components are arranged, connected, fabricated, and integrated with the building.
The grid is visible on the elevation.
The interfaces it creates extend throughout the façade behind it.
