A type of building curtain wall in which panels and supporting frames are prefabricated in the factory as complete curtain wall units and directly installed onto the main structure.
It serves two main classifications:

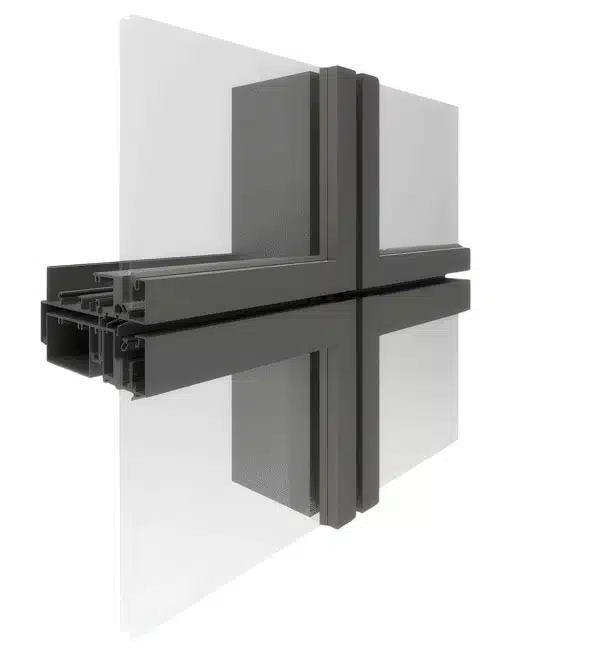

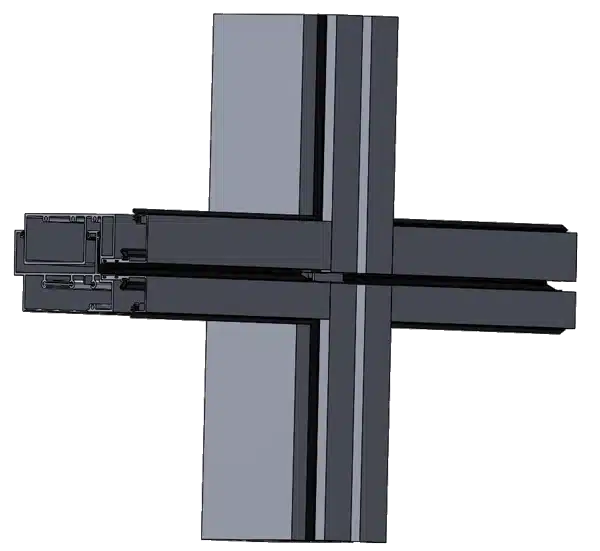

UN 150

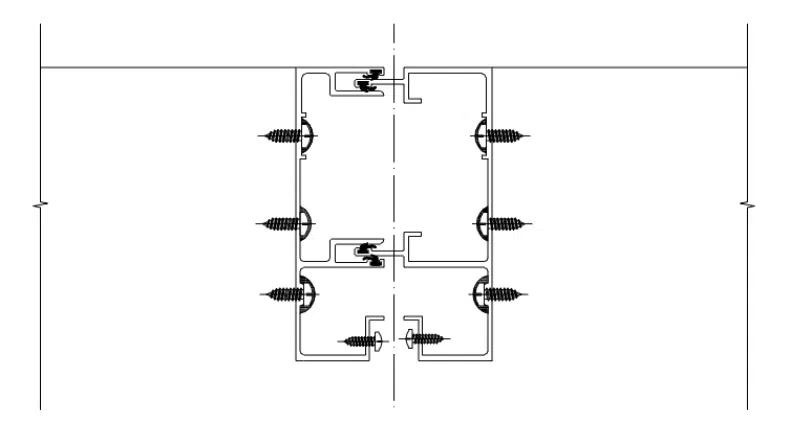

Tongue-and-groove connections ensure better alignment and greater structural integrity.

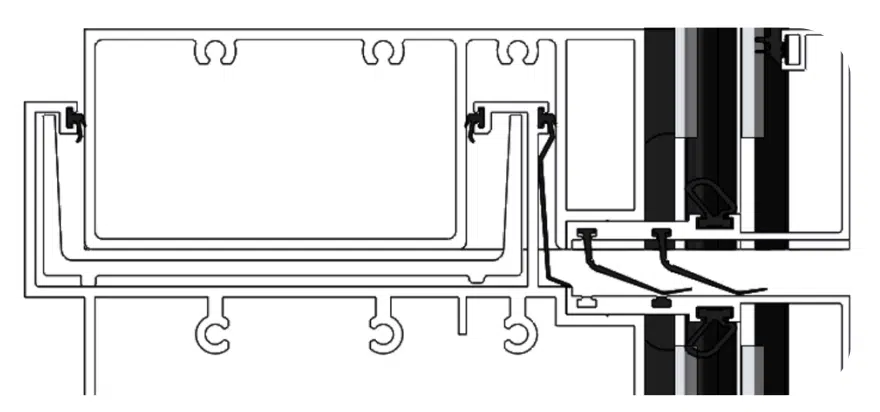

Four-layers waterproofing design
Representative Projects:
TOM CONDO, CANADA
U-Value:
↑ to 1.5 W/(m²·K)
Sound Insulation
↑ to 52 dB
Wind load Resistance
±1.40kPa / ±2.10kPa
Air permeability
±300 Pa
Light Reduction
Water Resistance
Light Transmittance
Thermal Break
Quick Installation
Glass, aluminum panels, and other materials are integrated in the factory, enhancing the level of building industrialization.
Factory assembly allows for thorough quality inspection, ensuring high engineering standards.
The unit height matches the floor height, with a width of 1.2 to 1.5 meters. Units are directly connected to embedded components, ensuring quick and easy installation.

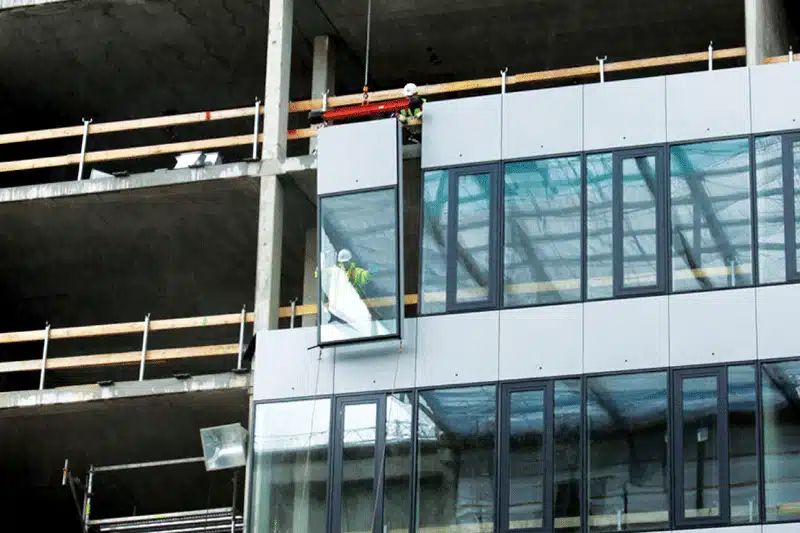

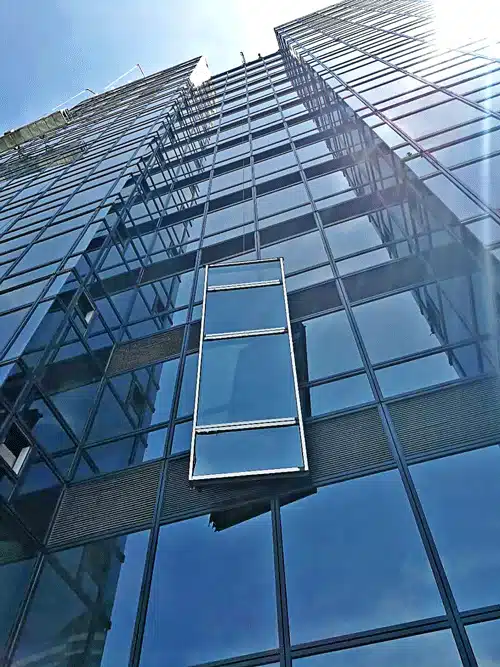

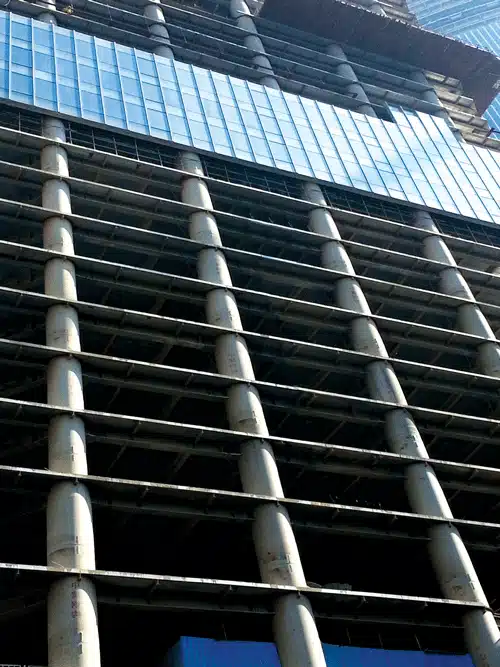

Installed from bottom to top, allowing simultaneous construction with civil works, thus reducing project timelines.
Installation is completed within floors, minimizing labor costs.
Advanced design capabilities and equipment are necessary, making it accessible only to experienced curtain wall companies.
Unitized curtain walls offer superior wind and water resistance with airtight seals, built-in drainage, and ventilation systems. They adapt to temperature changes and feature UV and corrosion resistance, making them ideal for high-rise and coastal buildings.
Notes: Due to complex profiles and large material consumption, costs are slightly higher than those of frame-supported curtain walls.
