Sustainable Airport Facade: CJIA Expansion Project

Project Overview

Project Name: Guyana CJIA Airport Expansion

Location: Cheddi Jagan International Airport, Guyana

Facade System: Exposed Frame Curtain Wall with Aluminum Veneer Cladding

Facade Area: 6,448 square meters

Scope: Design, engineering, fabrication, and installation of curtain wall systems

Sustainable Airport Facade: CJIA Expansion Project

Key Features

1. Integration of Exposed Frame Curtain Wall and Aluminum Veneer Cladding

The structural strength of the exposed frame curtain walls are combined with a sleek, modern design. And they are seamlessly integrated with the aluminum cladding for a polished finish. The addition of aluminum veneer also guaranteed the durability and resistance to harsh weather conditions.

In this project, the exposed frame curtain wall included 1.2885 m² units fitted with 8+1.52+8+12A+10 mm blue-grey Low-E laminated insulated glass. The aluminum profiles were finished with fluorocarbon coating on the exterior visible surface and powder coating on the interior, combining durability with a refined appearance. Another 3.35 m² of curtain wall sections adopted 6+1.52+6 mm transparent laminated safety glass, which provides both structural strength and clear visibility. For the perimeter treatment, 2.3528 m² of aluminum veneer panels were applied, functioning as edge closures while also serving as decorative accents that complete the facade design.

2. Energy-Efficient Design

The advanced glazing and high-performance coatings can improve thermal insulation and reduce solar heat gain.

3. Sustainable Solution

The curtain wall has supported the energy efficiency and environmental responsibility and helped the airport minimize its carbon footprint.

Sustainable Airport Facade: CJIA Expansion - installation 2
Sustainable Airport Facade: CJIA Expansion - installation 1
Sustainable Airport Facade: CJIA Expansion - installation 3

Design & Engineering

SUNFRAME’s engineering team developed a high-performance curtain wall system tailored to the airport’s coastal environment.

The glass and cladding package was selected to deliver exceptional performance while accentuating the terminal’s contemporary aesthetic:

 Low-E Insulated Glass – Minimizes solar heat gain yet floods the terminal with natural daylight, creating a bright and comfortable environment.

 Laminated Safety Glass – Reinforces high-traffic areas with superior strength and impact resistance, enhancing passenger safety.

 Aluminum Veneer Panels – Frame transitions and edge details with precision, doubling as protective closures and decorative caps that seamlessly tie the façade together.

 Surface Finishes – Exterior fluorocarbon coating withstands the harsh coastal climate, while interior powder coating preserves a smooth, refined appearance.

Manufacturing & Installation

 Fabrication: The curtain walls and aluminum veneers were precisely engineered at SUNFRAME’s advanced production facilities. This ensures the top-tier quality and consistency.

 Installation: The installation was executed efficiently to meet strict deadlines. Meanwhile. It can maintain the seamless alignment with the building’s structural framework.

Outcome & Impact

 On-Time Delivery: SUNFRAME has completed this facade project within the project’s tight schedule and taken an important part in supporting the airport’s expansion plans.

☞ Built to Last: The curtain wall system is durable, even in challenging coastal climates.

☞ Energy-Saving Performance: The design makes the cooling demands less, which has contributed to the airport’s sustainability goals.

Sustainable Airport Facade: CJIA Expansion - installation

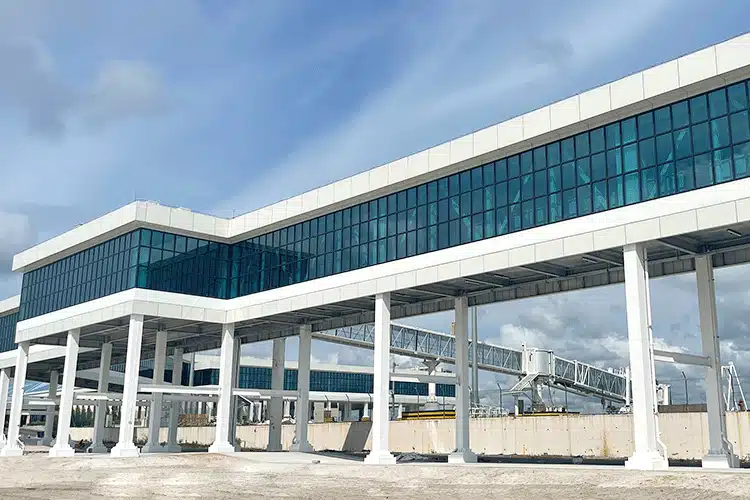

Exposed Frame Curtain Wall Project Display

Conclusion

The Guyana CJIA Airport Expansion showcases SUNFRAME’s capability in providing innovative, high -performance facade solutions for large-scale infrastructure projects. The project seamlessly integrates aesthetic design, exceptional durability, and energy efficiency. And all of these has fully demonstrated SUNFRAME’s expertise and outstanding execution in the field of curtain wall engineering.
