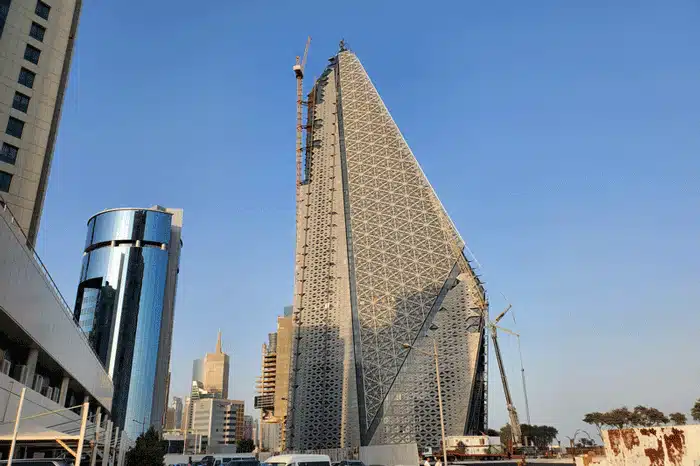

Burj Al Mana Tower Curtain Wall by SUNFRAME
Project Overview
Name: Burj Al Mana Tower (Al Mana Tower)
Location: West Bay – Al Dafna, Doha, Qatar
Project Stakeholders
– Owner: Al Bandary Engineering
– Architectural Design: MZ & Partners
– Façade Engineering: SunFrame Façade Engineering (SFFE)
Building
Scale
– Total Floor Area: 117,508 sqm
– Structure: 6-level underground parking + Ground floor + 56-story main tower
Functional
Zoning
– Residential: 168 apartments (1-3 bedroom units)
– Commercial: 117 office units
Project
Timeline
– Late 2017: SFFE engaged in project requirements

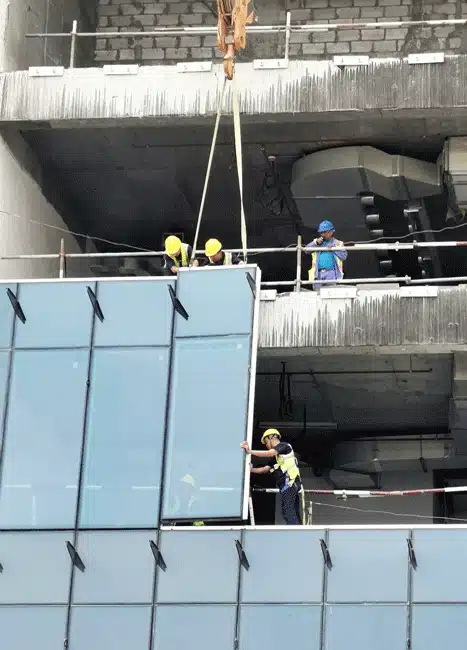

– 2019: Installation of curtain wall and Mashrabiya system commenced
– 2023: Project completion

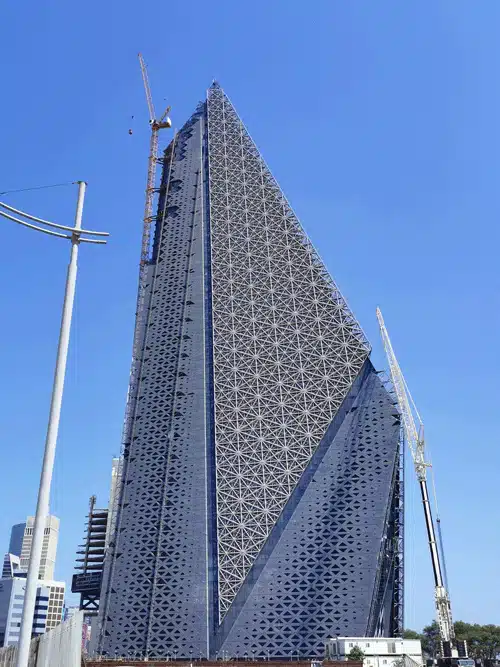

Façade
System
– Unitized Glass Curtain Wall: 42,000 sqm
– Traditional Shading System (Mashrabiya): 37,000 sqm
The Used Aluminum Cast Component

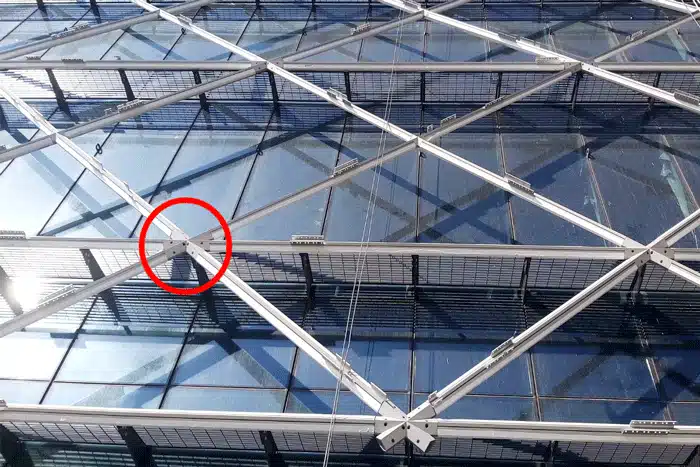

Aluminum Cast Component A for Burj Al Mana Tower Curtain Wall

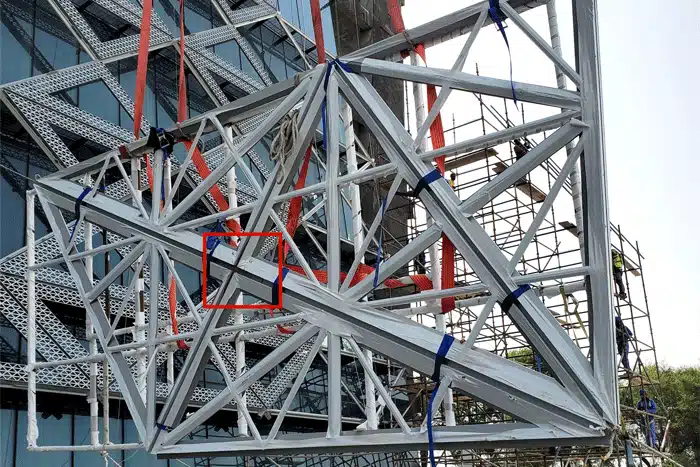

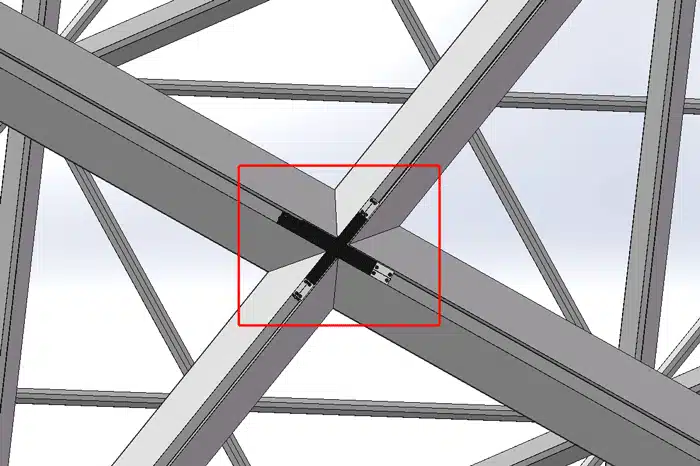

Aluminum Cast Component B for Burj Al Mana Tower Curtain Wall

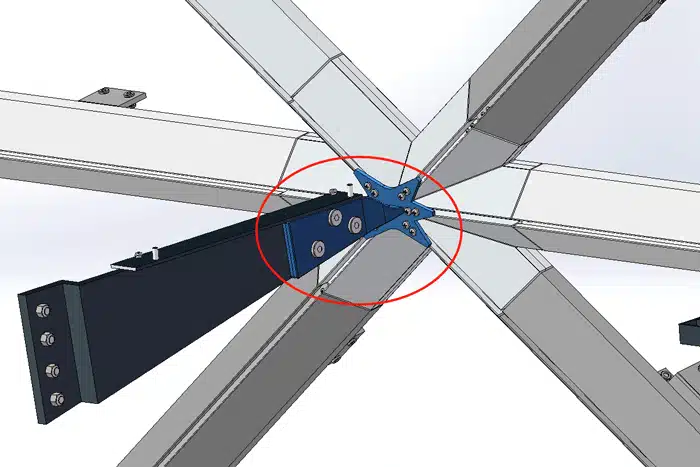

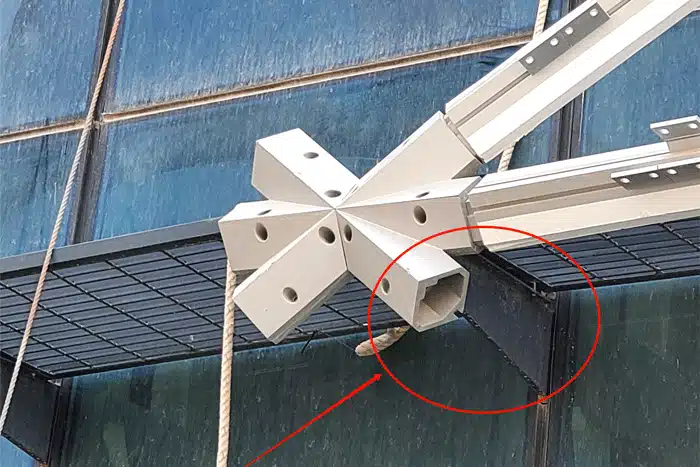

Aluminum Cast Component C for Burj Al Mana Tower Curtain Wall

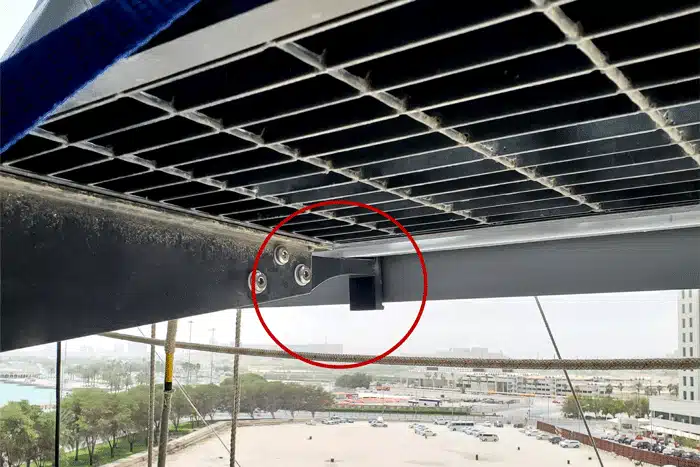

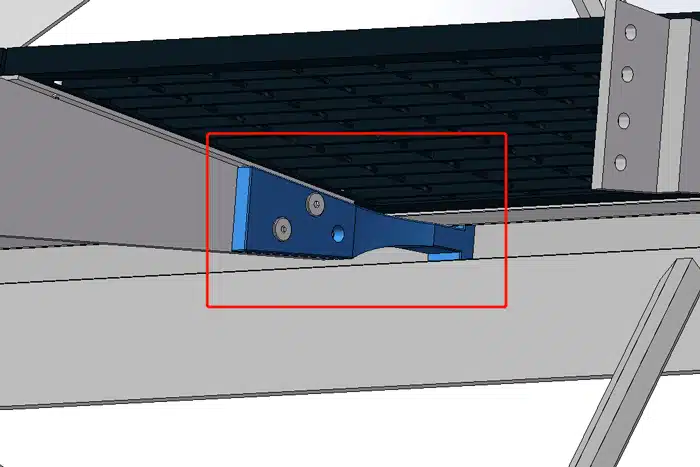

Aluminum Cast Component D for Burj Al Mana Tower Curtain Wall

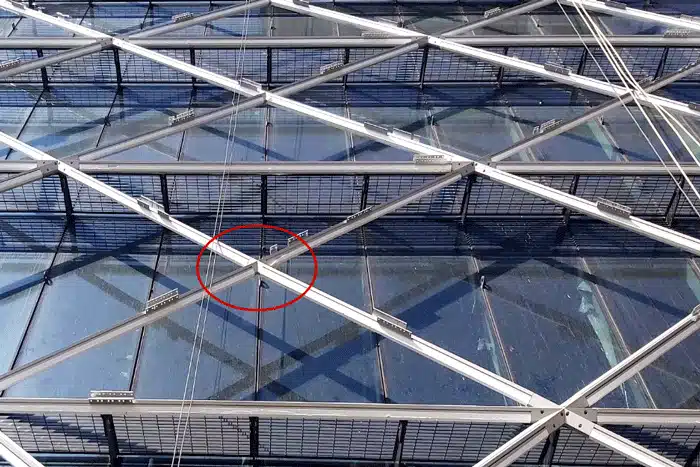

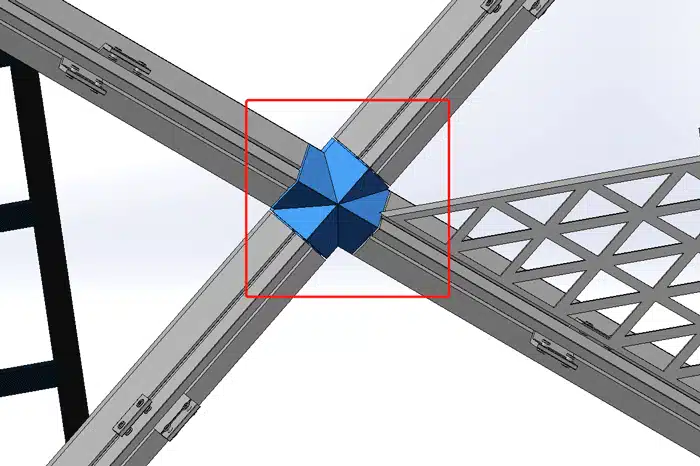

Aluminum Cast Component E for Burj Al Mana Tower Curtain Wall
Design Challenges & Technological Applications

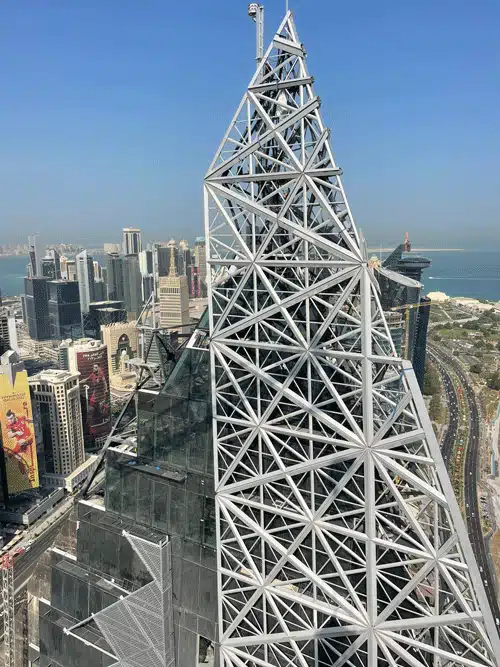

1. Uniqueness of the Mashrabia Shading System
– Inspired by Middle Eastern architectural heritage combined with modern technology, requiring highly customized components.
– Many elements had to be custom-molded due to complex geometries, demanding extreme precision in manufacturing.
2. SFFE Core Technologies
– 3D Simulation & Modeling: Utilized 3D simulation technology to analyze material properties and ensure consistency with architectural design.
– 3D Cutting Technology: Digital fabrication techniques enabled precise production and assembly of complex-shaped components.
3. Engineering Challenges

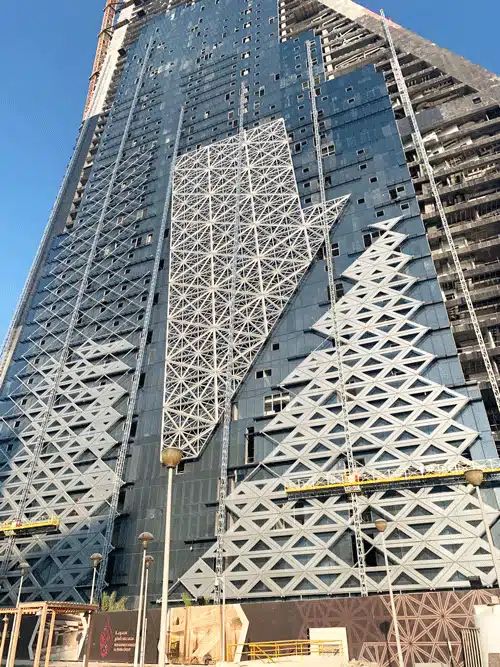

– The curtain wall and Mashrabiya system required coordinated installation, balancing functionality and aesthetics.
– The team overcame complex construction challenges through innovative solutions and meticulous project management.
Project Significance
– Landmark Status: As a luxury high-rise complex in Doha’s West Bay, the 56-story tower reshapes the city’s skyline.
– Cultural Integration: Merges Middle Eastern architectural heritage (Mashrabiya) with modern façade technology, setting a regional architectural benchmark.
– Technical Excellence: SFFE demonstrated full-process expertise in complex façade engineering, establishing a reference case for the industry.
